Anti-drone Gear
Unauthorized drone flight are the new challenge for public security. Anti-drone gear will secure the key airspace,effectively defending low altitude drone flight.

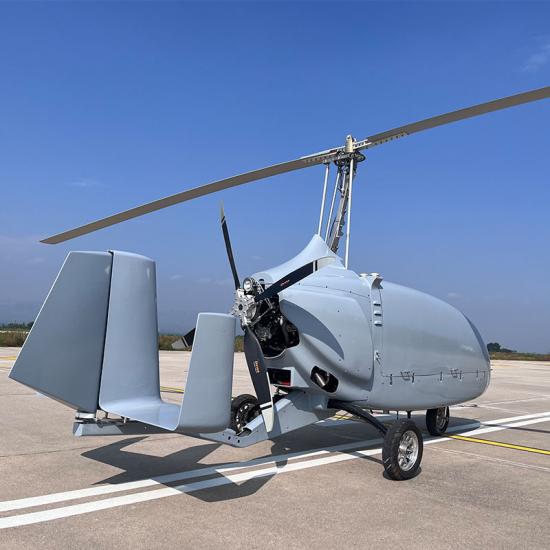

Empty weight: 350kg
Maximum take-off weight (MTOW):
560kg
Maximum landing weight (MLW):
560kg
Maximum payload (including fuel):
210kg
Maximum airdrop weight: 100kg
Practical ceiling: 6000m
Cruising speed: 120km/h
Fuel tank capacity: 80L
Maximum endurance: 4h
Maximum range: 480km
Take-off and landing distance at
sea level: 50-100m
Wind resistance level in flight:
> L9
Operating temperature: -55°C-50°C
Number of operators: 3
Rotor diameter: 8.8M
Cargo hold volume: 0.65M³
Unauthorized drone flight are the new challenge for public security. Anti-drone gear will secure the key airspace,effectively defending low altitude drone flight.
Grid control solution for urban low-altitude drone
Provides the function of driving away or crash landing the drone, suitablefor individual soldiers to carry. Product size:400mmx230mmx630mm Interference method: omnidirectional radio interference Full frequency band support: 433MHZ，900MHZ,1.2GHz,1.5GHz,2.4GHz, 5.2GHz,5.8GHZ Interference distance: 500-1500mInterference mode: eviction, forced landing Product quality: 26kg Protection grade: IP55.
The Watch UAV is a device that integrates detection and countermeasures. It can be flexibly deployed in key control areas to achieve 7×24 hours of automatic detection and countermeasures against drones (detection radius 3km, countermeasure radius 1km). It supports blacklist and whitelist settings, defense zone settings, precise countermeasures, etc. It can quickly locate the position of the drone and the pilot by analyzing the drone signal. It can also interfere with the drone signal to make it land or return.
Using ultra-wideband antennas, it can detect drones in real time, including quadcopters, drones, etc., and issue warnings through sound, light, and vibration. It can also display the detected drone models.
Provide unmanned aerial vehicle (UAV) function for evacuation or forcedlanding, the product is lightweight and portable, suitable for individual sol-diers to carry Product size: 352mm x 310mm Interference frequencies: 2.4Ghz、5.8Ghz、433Ghz、928GHz Interference distance: > 5000 meters (in open environments) Product weight: 7.2kg.
A single-soldier handheld drone countermeasure gun that interferes with the target drone by directional electromagnetic waves, causing it to land or return. At the same time, it is lighter and more convenient based on the first generation. It can be easily put into a backpack and can be used with Overwatch One Mini to quickly build an unmanned aerial vehicle.
Wingspan: 6.9m Total length: 3.99m Maximum take-off weight: 150kg Take-off and landing mode: vertical take-off and landing Power system: gasoline/heavy oil engine Cruising speed: 100-130Km/h Maximum speed: 160Km/h Maximum ceiling: 7000m Maximum take-off altitude: 4000m Endurance time: 5h@20kg (flight time can be customized) Maximum mission load: 42kg (fuel + load) can be expanded to 60kg Maximum range: 1000km Wind resistance: Level 6
7 inch Maximum load 2.5kg Flight distance 10km Flight time 9 minutes (1.6kg load, 6s 6000mah battery test result) Maximum speed 120km/h 10 inch Maximum load 4kg Flight distance 10km Flight time 8 minutes (3.5kg load, 6s 6000mah battery test result) Maximum speed 120km/h
wheelbase ：738mm Expand size ：580*590*188mm Folding size ：342*194*118mm Maximum horizontal flight speed ：44km/h Maximum Mission Load ：1.5kg Maximum takeoff weight ：7.5kg Battery life ：20 minutes (load 1.5kg) Communication distance ：10km
Rotor type: six-rotor Altitude limit: 5000mm Wheelbase: 1600mm Maximum horizontal flight speed: 44km/h Maximum mission payload: 20kg Maximum take-off weight: 45kg Battery life: 45 minutes (12kg payload) Communication distance: 10km
Hardware-level write-blockers to secure forensically sound and fast digital investigation on various storage media. Compatible with forensic acquisition and analysis software. Plug & play without extra power supply.
